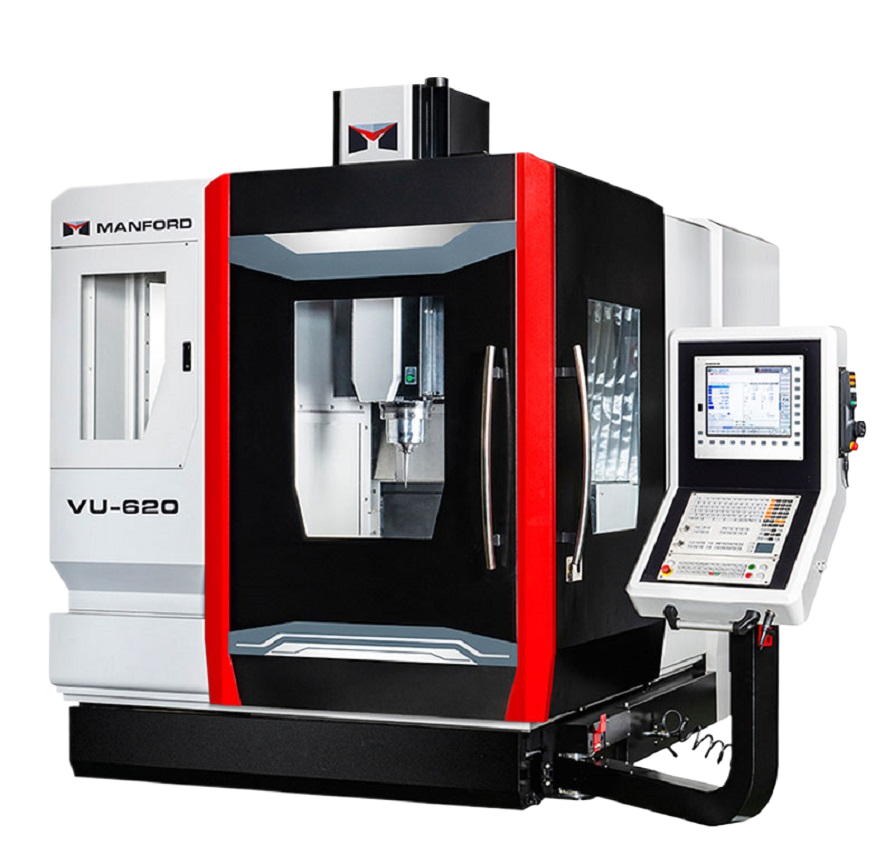

VU-620/Universal Type

Optional accessories available
Siemens ONE.png
Auto Lub.png
Specification
X TRAVEL:620 mm
Y TRAVEL:520 mm
Z TRAVEL:460 mm
SPINDLE NOSE TO TABLE SURFACE :150 ~ 610 mm
TABLE SIZE: Ø 650 mm
T-SLOT (Q'TY X SIZE X DIST) : 5 x 18 x 100 mm
MAX. TABLE LOAD: Horizontal 300 kg / Tilting 200 kg
ATC CAPACITY:32 tools
CNC CONTROL:Heidenhain TNC640/Siemens 840D
Spindle
TRANSMISSION:Direct type
SPINDLE TAPER:BBT-40
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:10 / 12.5 kW *
Rotary Table(B/C AXIS)
A AXIS TILTING RANGE -50˚ ~ + 110˚
C AXIS ROTATING RANGE: 360˚
Specification
X TRAVEL:24.41 inch
Y TRAVEL:20.47 inch
Z TRAVEL:18.11 inch
SPINDLE NOSE TO TABLE SURFACE :5.91 ~ 24.02 inch
TABLE SIZE: Ø 25.59 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.32 x 0.71 x 3.94 inch
MAX. TABLE LOAD: Horizontal 661.4 lbs / Tilting 440.9 lbs
ATC CAPACITY:32 tools
CNC CONTROL:Heidenhain TNC640/Siemens 840D
Spindle
TRANSMISSION:Direct type
SPINDLE TAPER:BBT-40
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:10 / 12.5 kW *
Rotary Table(B/C AXIS)
A AXIS TILTING RANGE -50˚ ~ + 110˚
C AXIS ROTATING RANGE: 360˚

*Spindle motor power depends on motor selection.

Note: Specifications are subject to change without further notice.
