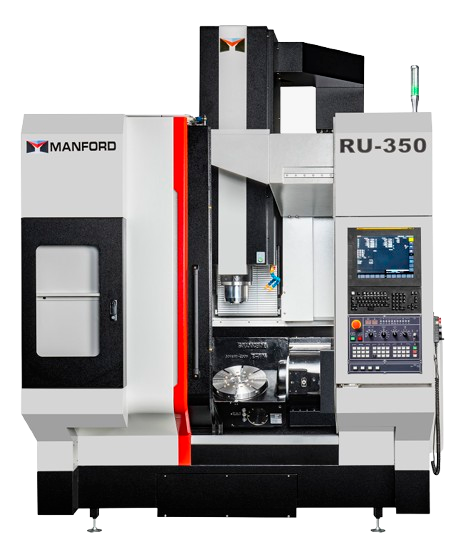

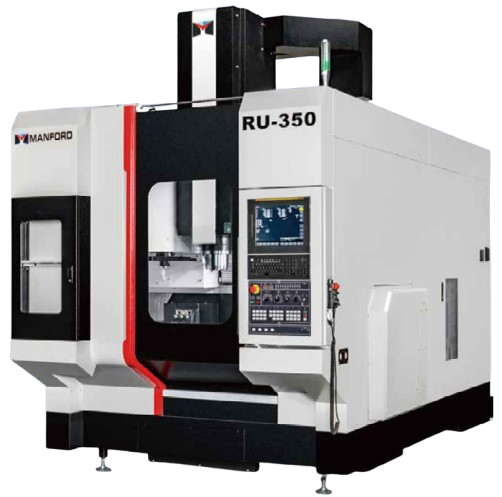

RU-350/Ram Type
Specification
X TRAVEL:630 mm (+300~-330)
Y TRAVEL:630 mm (+280~-350)
Z TRAVEL:510 mm
SPINDLE NOSE TO TABLE SURFACE ::70 ~ 580 mm
TABLE SIZE: Ø 350 mm
T-SLOT (Q'TY X SIZE X DIST) : 8 x 12 x 45 mm
MAX. TABLE LOAD: Horizontal 200 kg / Tilting 150 kg
ATC CAPACITY:32 tools
CNC CONTROL:Fanuc 0iMF 15"
Spindle
TRANSMISSION:Direct type
SPINDLE TAPER:BBT-40
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:7.5 / 11 kW *
Rotary Table(B/C AXIS)
A AXIS TILTING RANGE -120˚ ~ + 10˚
C AXIS ROTATING RANGE: 360˚
X TRAVEL:630 mm (+300~-330)
Y TRAVEL:630 mm (+280~-350)
Z TRAVEL:510 mm
SPINDLE NOSE TO TABLE SURFACE ::70 ~ 580 mm
TABLE SIZE: Ø 350 mm
T-SLOT (Q'TY X SIZE X DIST) : 8 x 12 x 45 mm
MAX. TABLE LOAD: Horizontal 200 kg / Tilting 150 kg
ATC CAPACITY:32 tools
CNC CONTROL:Fanuc 0iMF 15"
Spindle
TRANSMISSION:Direct type
SPINDLE TAPER:BBT-40
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:7.5 / 11 kW *
Rotary Table(B/C AXIS)
A AXIS TILTING RANGE -120˚ ~ + 10˚
C AXIS ROTATING RANGE: 360˚
Specification
X TRAVEL:24.8 inch(+11.81~-12.99)
Y TRAVEL:24.8 inch(+11.02~-13.78)
Z TRAVEL:20.08 inch
SPINDLE NOSE TO TABLE SURFACE :2.76 ~ 22.84 inch
TABLE SIZE: Ø 13.78 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.32 x 0.47 x 1.77 inch
MAX. TABLE LOAD: Horizontal 440.9 lbs / Tilting 330.7 lbs
ATC CAPACITY:32 tools
CNC CONTROL:Fanuc 0iMF 15"
SPINDLE
TRANSMISSION:Direct type
SPINDLE TAPER:BBT-40
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:7.5 / 11 kW *
ROTARY TABLE ( B/C AXIS )
A AXIS TILTING RANGE -120˚ ~ + 10˚
C AXIS ROTATING RANGE: 360˚
X TRAVEL:24.8 inch(+11.81~-12.99)
Y TRAVEL:24.8 inch(+11.02~-13.78)
Z TRAVEL:20.08 inch
SPINDLE NOSE TO TABLE SURFACE :2.76 ~ 22.84 inch
TABLE SIZE: Ø 13.78 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.32 x 0.47 x 1.77 inch
MAX. TABLE LOAD: Horizontal 440.9 lbs / Tilting 330.7 lbs
ATC CAPACITY:32 tools
CNC CONTROL:Fanuc 0iMF 15"
SPINDLE
TRANSMISSION:Direct type
SPINDLE TAPER:BBT-40
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:7.5 / 11 kW *
ROTARY TABLE ( B/C AXIS )
A AXIS TILTING RANGE -120˚ ~ + 10˚
C AXIS ROTATING RANGE: 360˚
*Spindle motor power depends on motor selection.
Note: Specifications are subject to change without further notice.
FEATURES

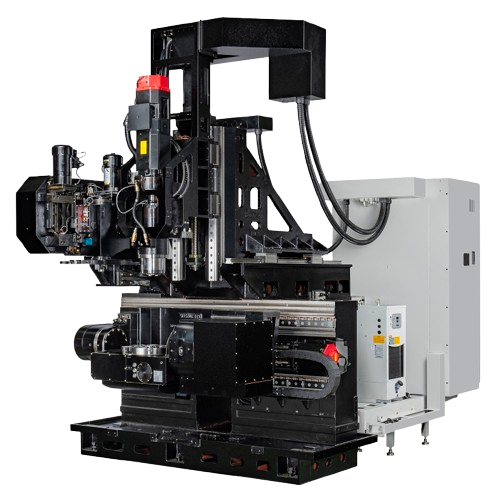

RU-350 is with ram type structure and swiveling rotary table design.
BBT40 taper provided a firmer grip to the tools which prevents tool vibration that affects machining accuracy with optional 24,000 rpm built-in spindle.
RU-350 is with an embedded Ø350 mm diameter rotary table. Table load capacity is Horizontal 200 kgs and Tilting 150 kgs.
C-axis rotating range is 360º, and max. speed is 22.2 rpm.
Any complex workpiece can be accomplished with a single setup.
RU-350 application industry, such as Aerospace industry, Automotive industry and Hi Tech electronics industry.
