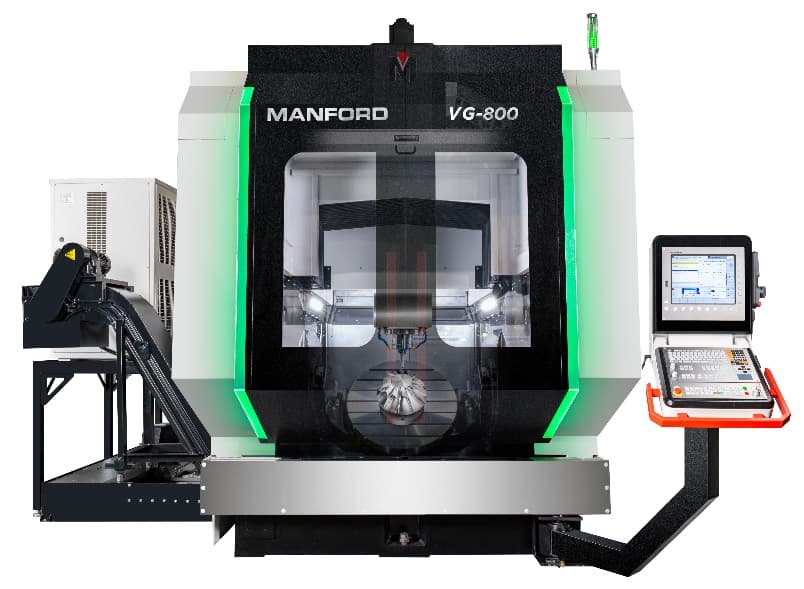

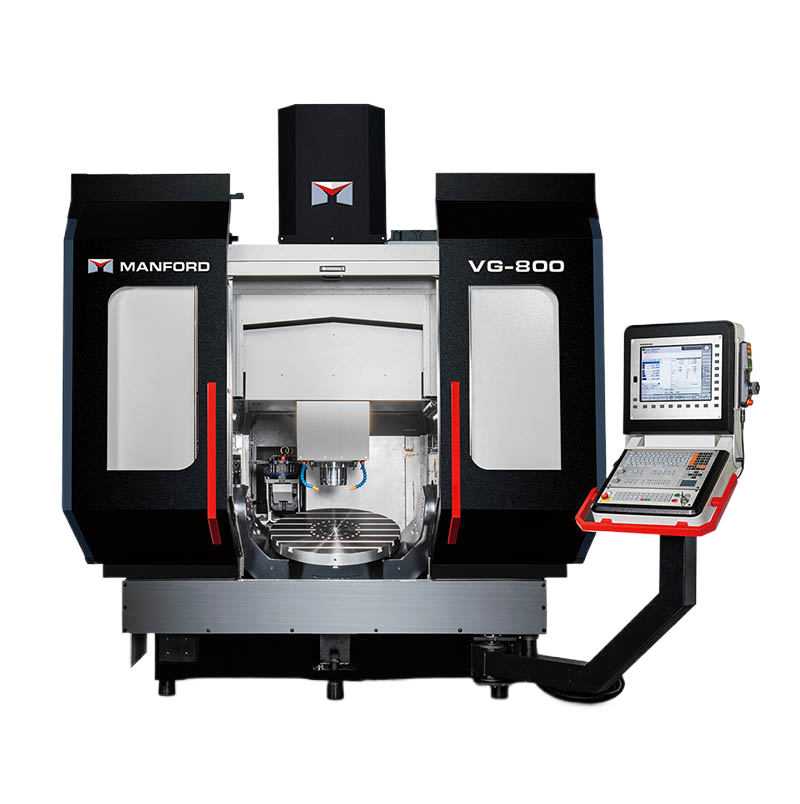

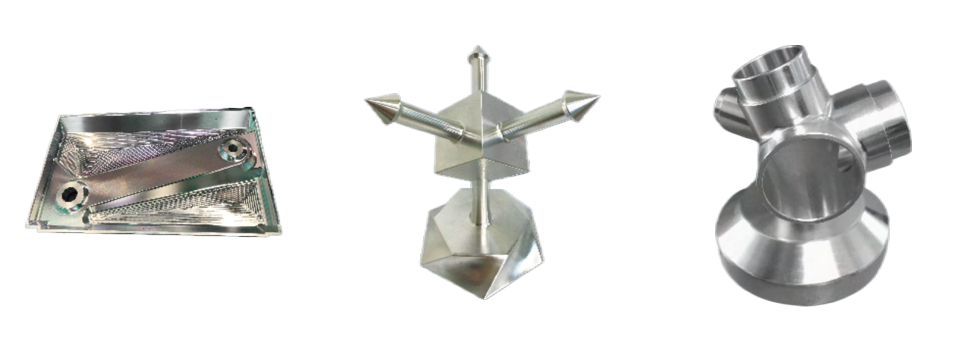

VG-800/Gantry Type

Metric

Specification
X TRAVEL:800 mm
Y TRAVEL:1,245 mm
Z TRAVEL: 620 mm
SPINDLE NOSE TO TABLE SURFACE :100 ~ 720 mm
TABLE SIZE: Ø 800 mm
T-SLOT (Q'TY X SIZE X DIST) : 7 x 14 x 100 mm
MAX. TABLE LOAD: Horizontal 1,000 kg / Tilting 500 kg
ATC CAPACITY:32 tools
CNC CONTROL:Heidenhain TNC640/Siemens 840D
Spindle
TRANSMISSION:Build-in
SPINDLE TAPER:HSK-A63
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:21 / 25 kW *
Rotary Table(B/C AXIS)
A AXIS TILTING RANGE -120˚ ~ + 30˚
C AXIS ROTATING RANGE: 360˚

Inch

Specification
X TRAVEL:31.5 inch
Y TRAVEL:49.02 inch
Z TRAVEL:24.41 inch
SPINDLE NOSE TO TABLE SURFACE :3.94 ~ 28.35 inch
TABLE SIZE: Ø 31.5 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.28 x 0.55 x 3.94 inch
MAX. TABLE LOAD: Horizontal 2204.6 lbs / Tilting 1102.3lbs
ATC CAPACITY:32 tools
CNC CONTROL:Heidenhain TNC640/Siemens 840D
Spindle
TRANSMISSION:Build-in
SPINDLE TAPER:HSK-A63
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:21 / 25 kW *
Rotary Table(B/C AXIS)
A AXIS TILTING RANGE -120˚ ~ + 30˚
C AXIS ROTATING RANGE: 360˚

Note: Specifications are subject to change without further notice.
