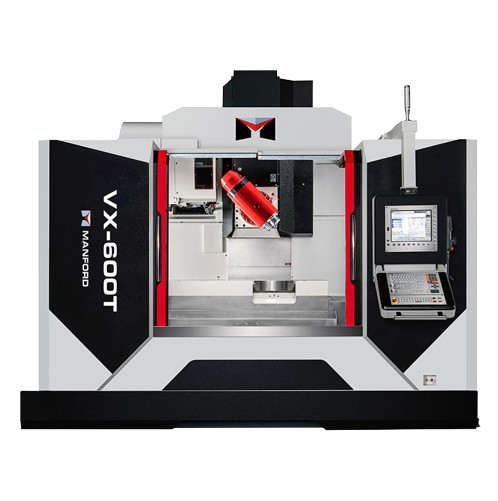

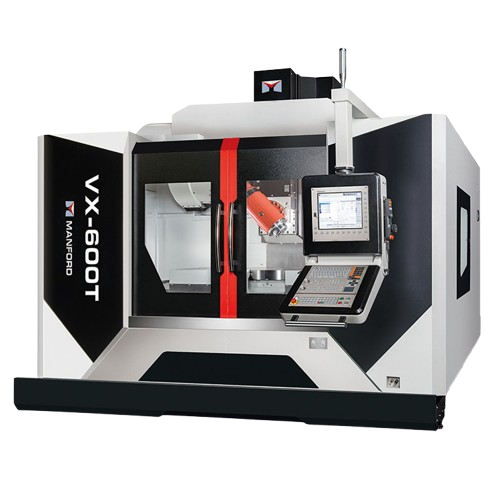

VX-600T/ Tilting&Turning
Specification
X TRAVEL:1,300 mm
Y TRAVEL:700 mm
Z TRAVEL:700 mm
SPINDLE NOSE TO TABLE SURFACE :20 ~ 720 mm
TABLE SIZE: 700 x 1,450 mm
T-SLOT (Q'TY X SIZE X DIST) : 5 x 18 x 125 mm
MAX. TABLE LOAD: 600 kg
ATC CAPACITY:24 / 30 / 32 / 40 tools
CNC CONTROL:Heidenhain TNC640/Siemens ONE
Spindle
TRANSMISSION:Worm gear
TILTING ANGLE:-120˚ ~ +30˚
SPINDLE TRANSMISSION:Build-in
SPINDLE TAPER:HSK-T63
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:21 / 25 kW *
Rotary Table(B/C AXIS)
TRANSMISSION:DD motor
TABLE DIAMETER:Ø 630 mm
C AXIS ROTATING RANGE: 360˚
MAX. SPEED:1,200 rpm
X TRAVEL:1,300 mm
Y TRAVEL:700 mm
Z TRAVEL:700 mm
SPINDLE NOSE TO TABLE SURFACE :20 ~ 720 mm
TABLE SIZE: 700 x 1,450 mm
T-SLOT (Q'TY X SIZE X DIST) : 5 x 18 x 125 mm
MAX. TABLE LOAD: 600 kg
ATC CAPACITY:24 / 30 / 32 / 40 tools
CNC CONTROL:Heidenhain TNC640/Siemens ONE
Spindle
TRANSMISSION:Worm gear
TILTING ANGLE:-120˚ ~ +30˚
SPINDLE TRANSMISSION:Build-in
SPINDLE TAPER:HSK-T63
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:21 / 25 kW *
Rotary Table(B/C AXIS)
TRANSMISSION:DD motor
TABLE DIAMETER:Ø 630 mm
C AXIS ROTATING RANGE: 360˚
MAX. SPEED:1,200 rpm
Specification
X TRAVEL:51.18 inch
Y TRAVEL:27.56 inch
Z TRAVEL:27.56 inch
SPINDLE NOSE TO TABLE SURFACE :0.79 ~ 28.35 inch
TABLE SIZE: 27.56 X 57.09 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.2 x 0.71 x 4.92 inch
MAX. TABLE LOAD: 1322.8 lbs
ATC CAPACITY:24 / 30 / 32 / 40 tools
CNC CONTROL:Heidenhain TNC640/Siemens ONE
Spindle
TRANSMISSION:Worm gear
TILTING ANGLE:-120˚ ~ +30˚
SPINDLE TRANSMISSION:Build-in
SPINDLE TAPER:HSK-T63
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:21 / 25 kW *
Rotary Table(B/C AXIS)
TRANSMISSION:DD motor
TABLE DIAMETER:Ø 630 mm
C AXIS ROTATING RANGE: 360˚
MAX. SPEED:1,200 rpm
X TRAVEL:51.18 inch
Y TRAVEL:27.56 inch
Z TRAVEL:27.56 inch
SPINDLE NOSE TO TABLE SURFACE :0.79 ~ 28.35 inch
TABLE SIZE: 27.56 X 57.09 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.2 x 0.71 x 4.92 inch
MAX. TABLE LOAD: 1322.8 lbs
ATC CAPACITY:24 / 30 / 32 / 40 tools
CNC CONTROL:Heidenhain TNC640/Siemens ONE
Spindle
TRANSMISSION:Worm gear
TILTING ANGLE:-120˚ ~ +30˚
SPINDLE TRANSMISSION:Build-in
SPINDLE TAPER:HSK-T63
SPINDLE SPEED:12,000 rpm
SPINDLE POWER:21 / 25 kW *
Rotary Table(B/C AXIS)
TRANSMISSION:DD motor
TABLE DIAMETER:Ø 630 mm
C AXIS ROTATING RANGE: 360˚
MAX. SPEED:1,200 rpm
Note: Specifications are subject to change without further notice.
