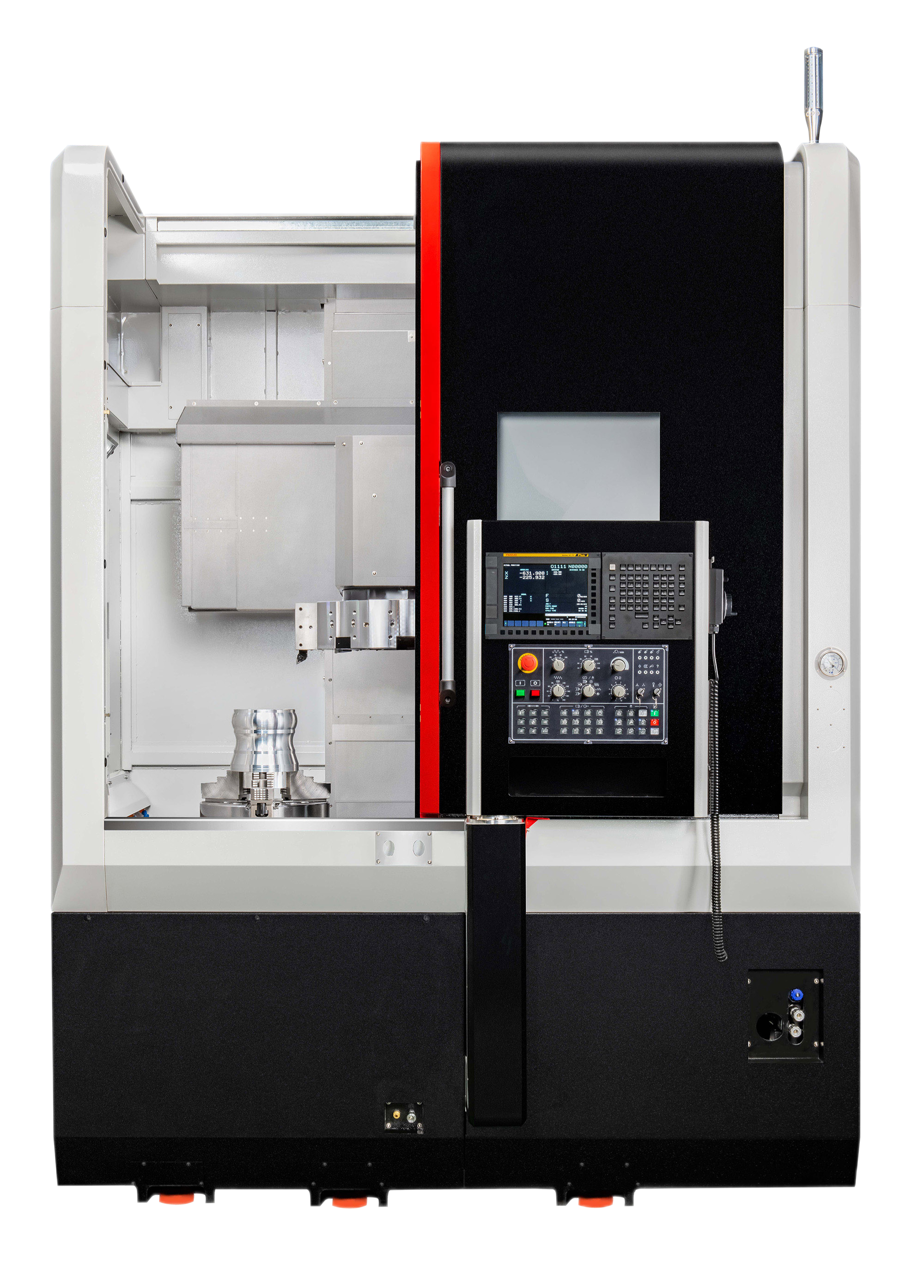

VTL-70

Metric

Capacity
Max. Swing diameter:ψ800
Max.Turning diameter:ψ700
Max. Turning height:600 mm
Max. Work loading:1,000 kg
Travel
X axis travel:-40+430 mm
Z axis travel:650 mm
Rapid feed- X/Z axis:12/20
Spindle
Spindle nose type:A2-11
Max. Spindle speed:50~2,000 rpm
Front bearing I.D of spindle:160 mm
Spindle touque:767 mm
Drilling / Tapping:N/A
Chuck size:15”
Turret
Type:Servo/Power
Number of tool stations:8 pcs
Tool shank size:32*32/Ø50 mm
Motor
Main spindle motor power:18.5/22(αp40)
Feed motor (X/Z):3/4 kw
Hydraulic oil pump:2.2 HP
Coolant pump:0.55*2 kw
Power requirement:50 KVA
Utility
Hydraulic tank capacity:54 L
Coolant tank:300 L
Lubrication tank:2 L
Air source:6 kg/cm2

Inch

Capacity
Max. Swing diameter:ψ800
Max.Turning diameter:ψ700
Max. Turning height:23.62 inch
Max. Work loading:2204.6 lbs
Travel
X axis travel:-1.58+16.93 inch
Z axis travel:25.59 inch
Rapid feed- X/Z axis:0.47/0.79 inch
Spindle
Spindle nose type:A2-11
Max. Spindle speed:50~2,000 rpm
Front bearing I.D of spindle:6.3 inch
Spindle touque:30.2 inch
Drilling / Tapping:N/A
Chuck size:15”
Turret
Type:Servo/Power
Number of tool stations:8 pcs
Tool shank size:1.26*1.26/Ø50 inch
Motor
Main spindle motor power:18.5/22(αp 40)
Feed motor (X/Z):3/4 kw
Hydraulic oil pump:2.2 HP
Coolant pump:0.55*2 kw
Power requirement:50 KVA
Utility
Hydraulic tank capacity:54 L
Coolant tank:300 L
Lubrication tank:2 L
Air source:6 kg/cm2

*Note: Specifications are subject to change without further notice.
