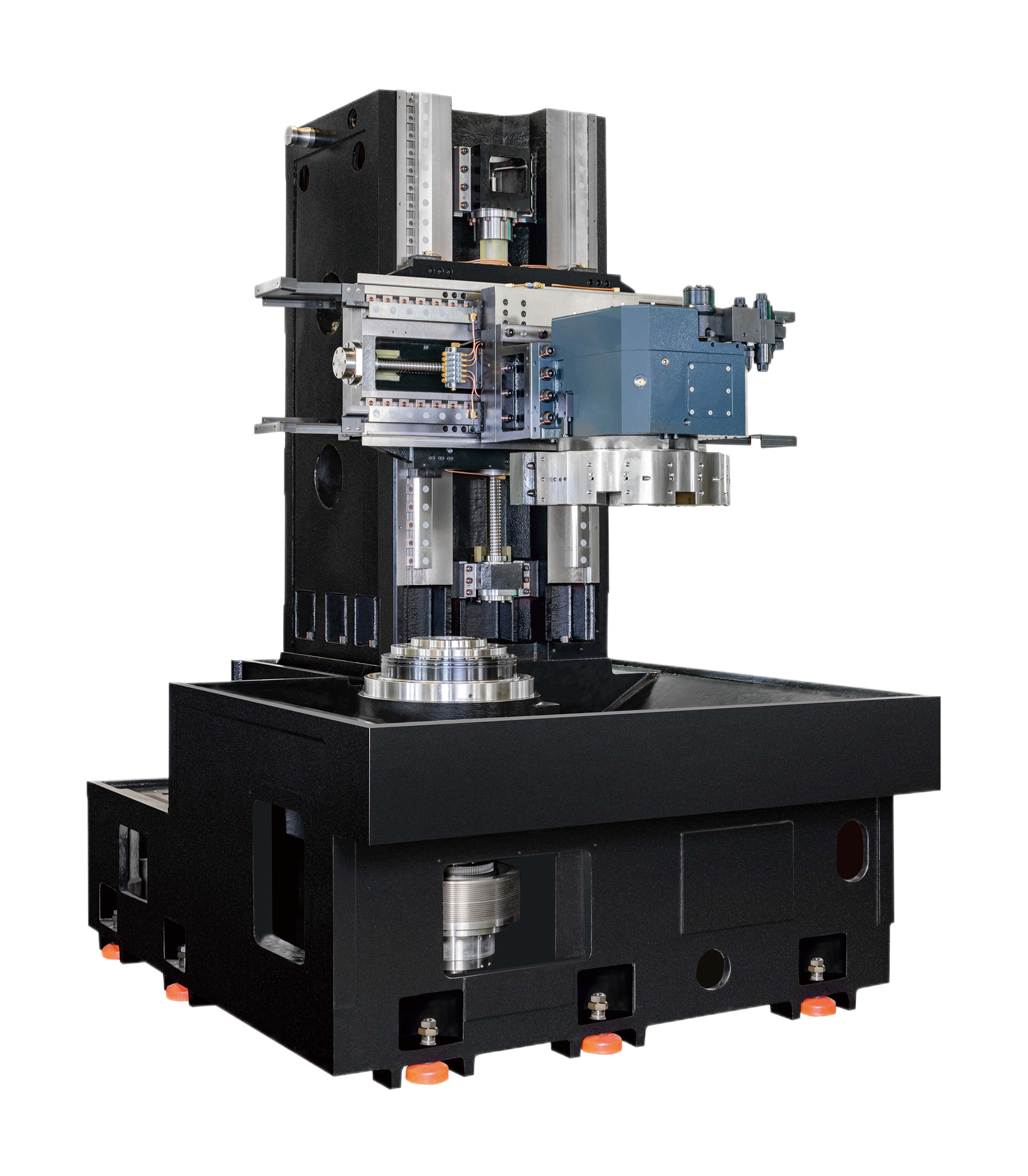

VTL-50

Capacity
Max. Swing diameter:ψ650
Max.Turning diameter:ψ550
Max. Turning height:500 mm
Max. Work loading:500 kg
Travel
X axis travel:-40+350 mm
Z axis travel:550 mm
Rapid feed- X/Z axis:12/24M
Spindle
Max. Spindle speed:50~2,500 rpm
Front bearing I.D of spindle:130 mm
Spindle touque:566 mm
Drilling / Tapping:N/A
Chuck size:12”
Turret
Type:Servo/Power
Number of tool stations:8 pcs
Tool shank size:32*32/Ø50 mm
Motor
Main spindle motor power:15/18.5(αp 30)
Feed motor (X/Z):1.6/3 kw
Hydraulic oil pump:2.2 HP
Coolant pump:0.55*2 kw
Power requirement:40 KVA
Utility
Hydraulic tank capacity:47 L
Coolant tank:300 L
Lubrication tank:2 L
Air source:6 kg/cm2
Capacity
Max. Swing diameter:ψ650
Max.Turning diameter:ψ550
Max. Turning height:19.69 inch
Max. Work loading:1102.3 lbs
Travel
X axis travel:-1.58+13.78 inch
Z axis travel:21.65 inch
Rapid feed- X/Z axis:0.47/0.95 inch
Spindle
Max. Spindle speed:50~2,500 rpm
Front bearing I.D of spindle:5.12 inch
Spindle touque:22.28 inch
Drilling / Tapping:N/A
Chuck size:12”
Turret
Type:Servo/Power
Number of tool stations:8 pcs
Tool shank size:1.26*1.26/Ø50 inch
Motor
Main spindle motor power:15/18.5(αp 30)
Feed motor (X/Z):1.6/3 kw
Hydraulic oil pump:2.2 HP
Coolant pump:0.55*2 kw
Power requirement:40 KVA
Utility
Hydraulic tank capacity:47 L
Coolant tank:300 L
Lubrication tank:2 L
Air source:6 kg/cm2

*Note: Specifications are subject to change without further notice.
