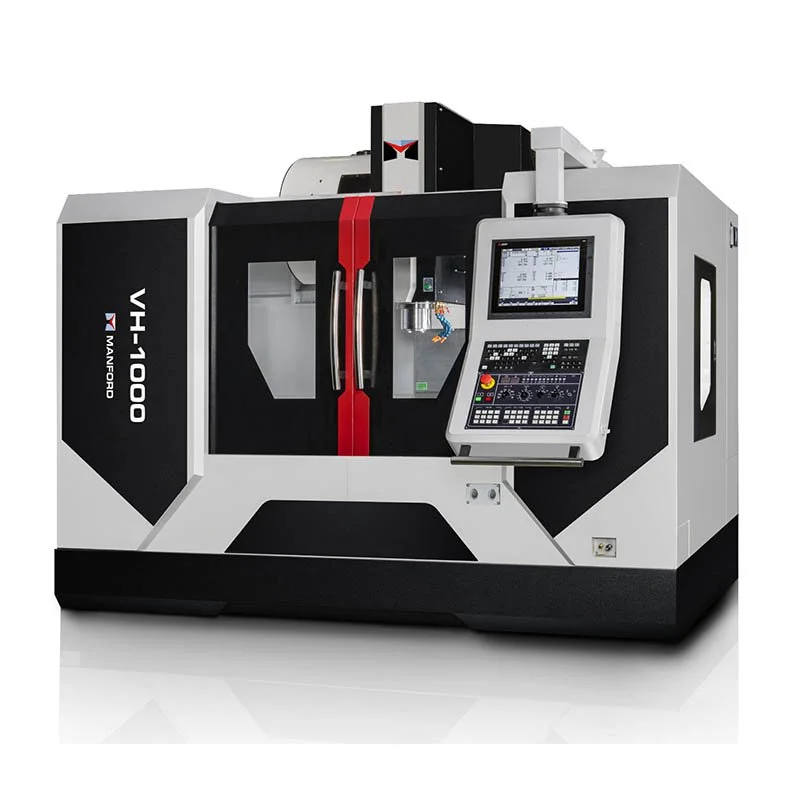

VH-850 /VH-1000

Specification
X TRAVEL:850 mm
Y TRAVEL:510 mm
Z TRAVEL: 560 mm
SPINDLE NOSE TO TABLE SURFACE :130 ~ 690 mm
TABLE SIZE: 1,000 x 500 mm
T-SLOT (Q'TY X SIZE X DIST) : 5 x 18 x 100 mm
MAX. TABLE LOAD:750 kg
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
TRANSMISSION:Belt type/direct type
SPINDLE TAPER:BT-40
SPINDLE SPEED:8,000rpm/10,000 rpm
SPINDLE MOTOR:5.5 / 7.5 kW
Other Items
ATC CAPACITY:Arm type 24 tools
Specification
X TRAVEL:33.47 inch
Y TRAVEL:20.08 inch
Z TRAVEL:22.05 inch
SPINDLE NOSE TO TABLE SURFACE :5.12 ~ 27.17 inch
TABLE SIZE: 39.37 X 19.69 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.2 x 0.71 x 3.94 inch
MAX. TABLE LOAD:1653.5 lbs
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
TRANSMISSION:Belt type/direct type
SPINDLE TAPER:BT-40
SPINDLE SPEED:8,000rpm/10,000 rpm
SPINDLE MOTOR:5.5 / 7.5 kW
Other Items
ATC CAPACITY:Arm type 24 tools
Specification
X TRAVEL:1,020 mm
Y TRAVEL:510 mm
Z TRAVEL: 560 mm
SPINDLE NOSE TO TABLE SURFACE :130 ~ 690 mm
TABLE SIZE:1,200 x500 mm
T-SLOT (Q'TY X SIZE X DIST) : 5 x 18 x 100 mm
MAX. TABLE LOAD:750 kg
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
TRANSMISSION:Belt type/direct type
SPINDLE TAPER:BT-40
SPINDLE SPEED:8,000rpm/10,000 rpm
SPINDLE MOTOR:5.5 / 7.5 kW
Other Items
ATC CAPACITY:ATC Genoa type 16 tools / Arm type 24 tools for maximum
Specification
X TRAVEL:40.16 inch
Y TRAVEL:20.08 inch
Z TRAVEL:22.05 inch
SPINDLE NOSE TO TABLE SURFACE :5.12 ~ 27.17 inch
TABLE SIZE: 47.25 X 19.69 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.2 x 0.71 x 3.94 inch
MAX. TABLE LOAD:1653.4 lbs
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
TRANSMISSION:Belt type/direct type
SPINDLE TAPER:BT-40
SPINDLE SPEED:8,000rpm/10,000 rpm
SPINDLE MOTOR:5.5 / 7.5 kW
Other Items
ATC CAPACITY:ATC Genoa type 16 tools / Arm type 24 tools for maximum

*Spindle motor power depends on motor selection

*Note: Specifications are subject to change without further notice.
