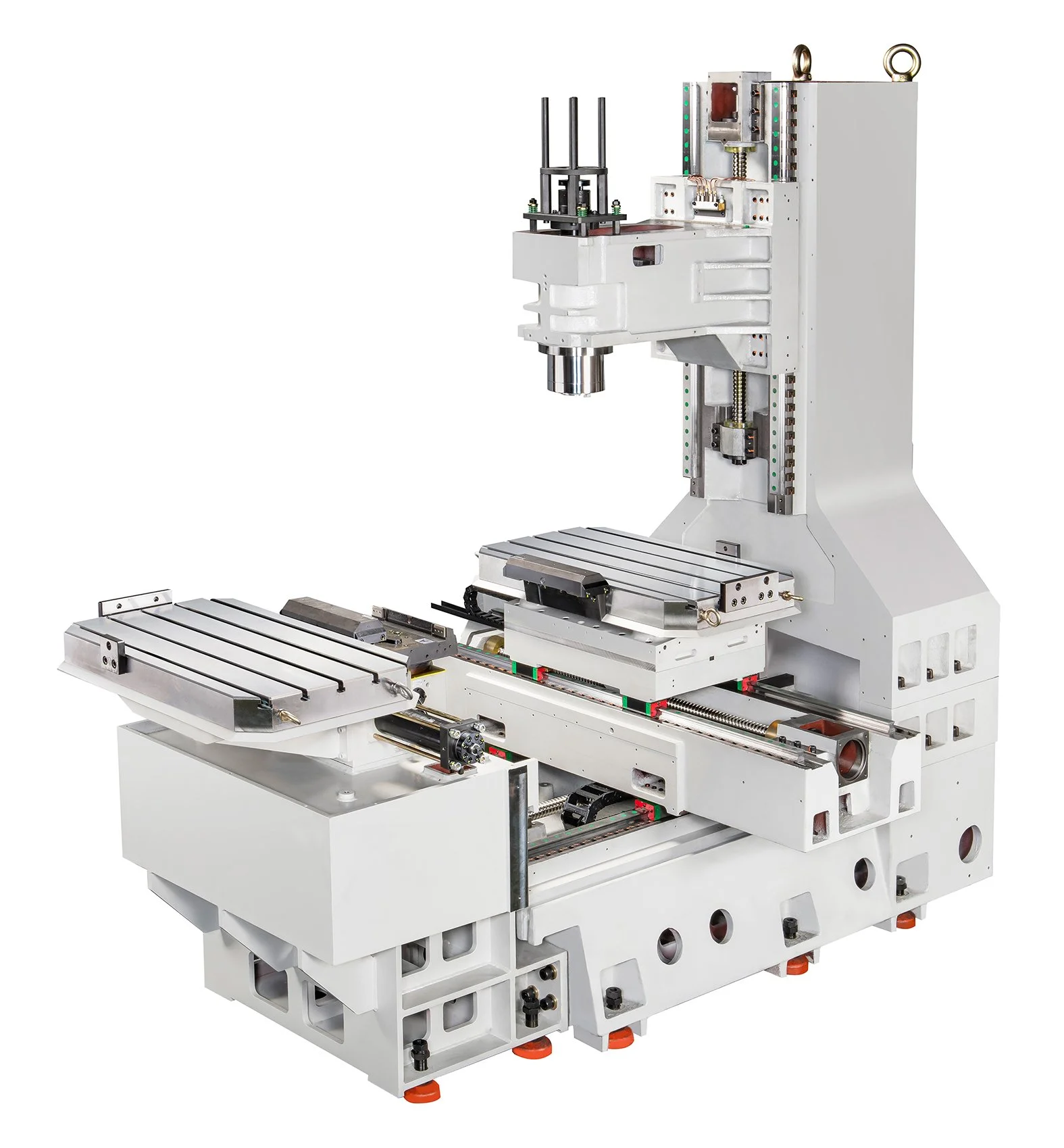

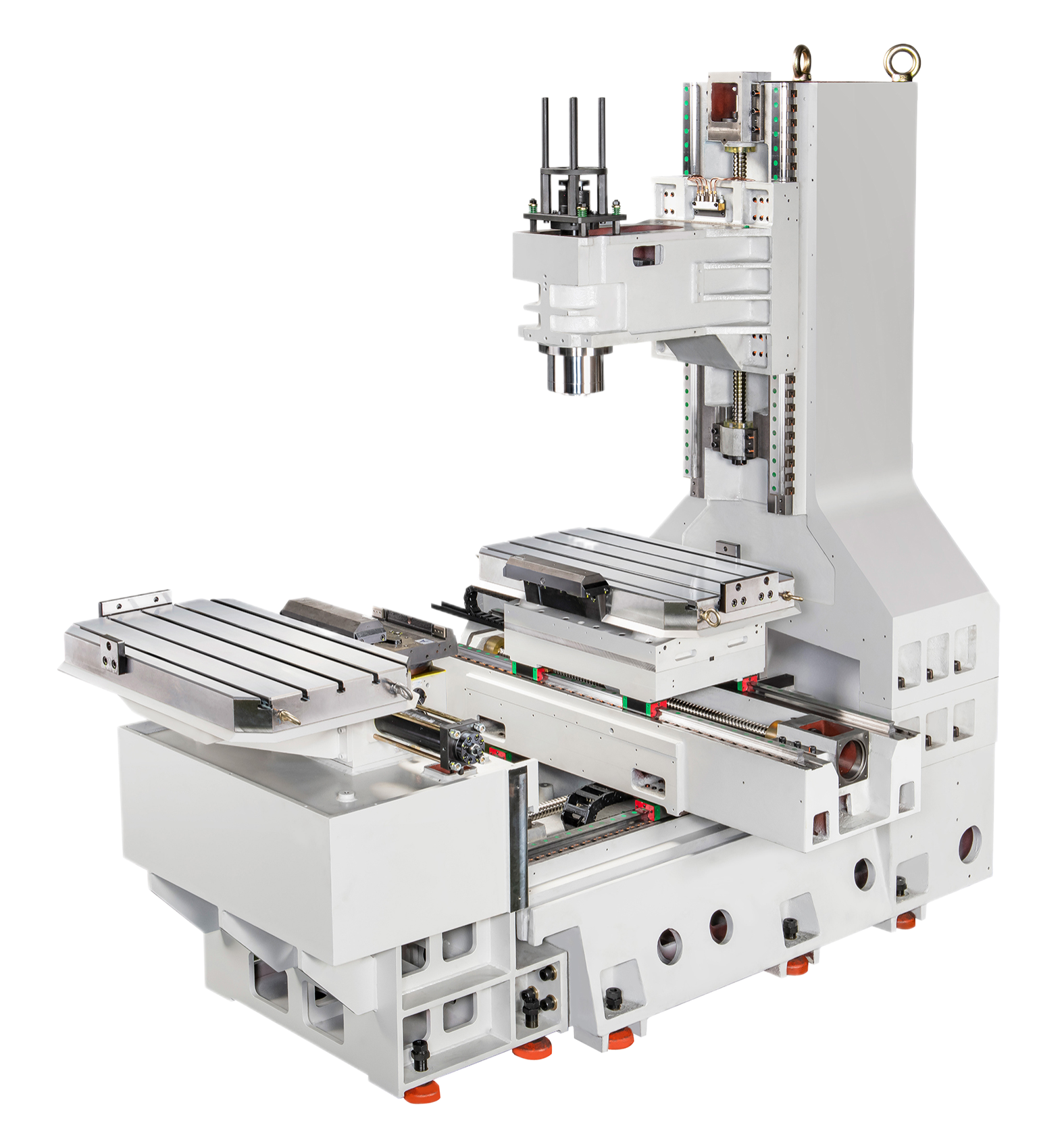

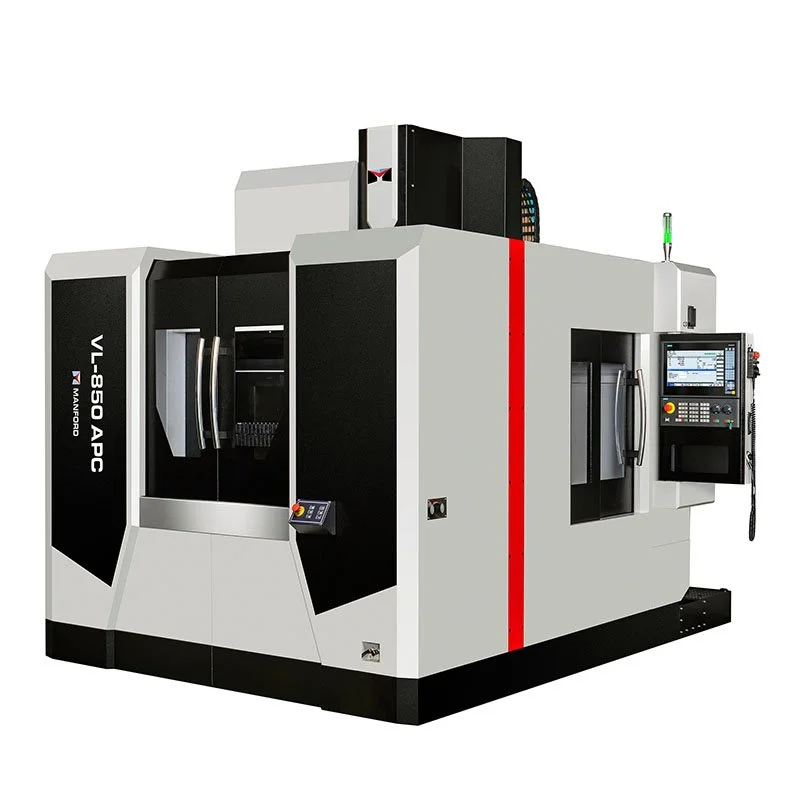

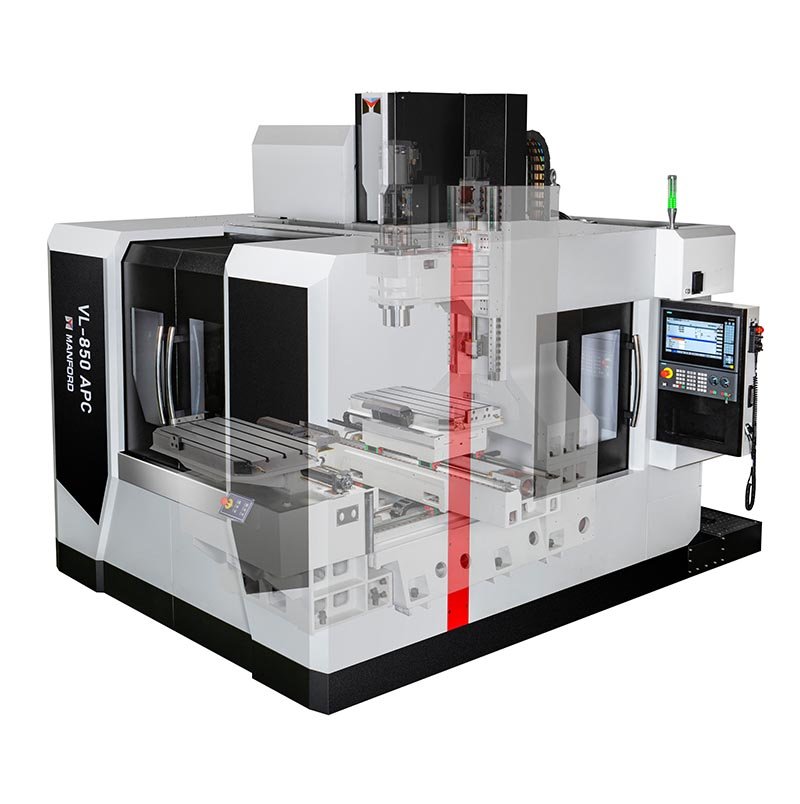

VL-850 APC

Metric

Specification
X TRAVEL:850 mm
Y TRAVEL:510 mm
Z TRAVEL: 560 mm
SPINDLE NOSE TO TABLE SURFACE :350 ~ 910 mm
TABLE SIZE:850 x500 mm(2pcs)
T-SLOT (Q'TY X SIZE X DIST) :14 x 5 x 100 mm
MAX. TABLE LOAD:250 kg*2 pcs = 500 kg
TABLE TRANSMISSION:Hydraulic hirth gear drive
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
TRANSMISSION:Belt type/direct type
SPINDLE TAPER:BT-40
SPINDLE SPEED:8,000rpm~15,000 rpm
SPINDLE MOTOR:5.5 / 7.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:Hydraulic (Opt. Servo)

Inch

Specification
X TRAVEL:33.47 inch
Y TRAVEL:20.08 inch
Z TRAVEL:22.05 inch
SPINDLE NOSE TO TABLE SURFACE :13.78 ~ 35.83 inch
TABLE SIZE: 39.37 X 19.69 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.2 x 0.71 x 3.94 inch
MAX. TABLE LOAD:551.2 lbs*2 pcs = 1102.3 lbs
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
TRANSMISSION:Belt type/direct type
SPINDLE TAPER:BT-40
SPINDLE SPEED:8,000rpm~15,000 rpm
SPINDLE MOTOR:5.5 / 7.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:Hydraulic (Opt. Servo)

*Spindle motor power depends on motor selection

*Note: Specifications are subject to change without further notice.
