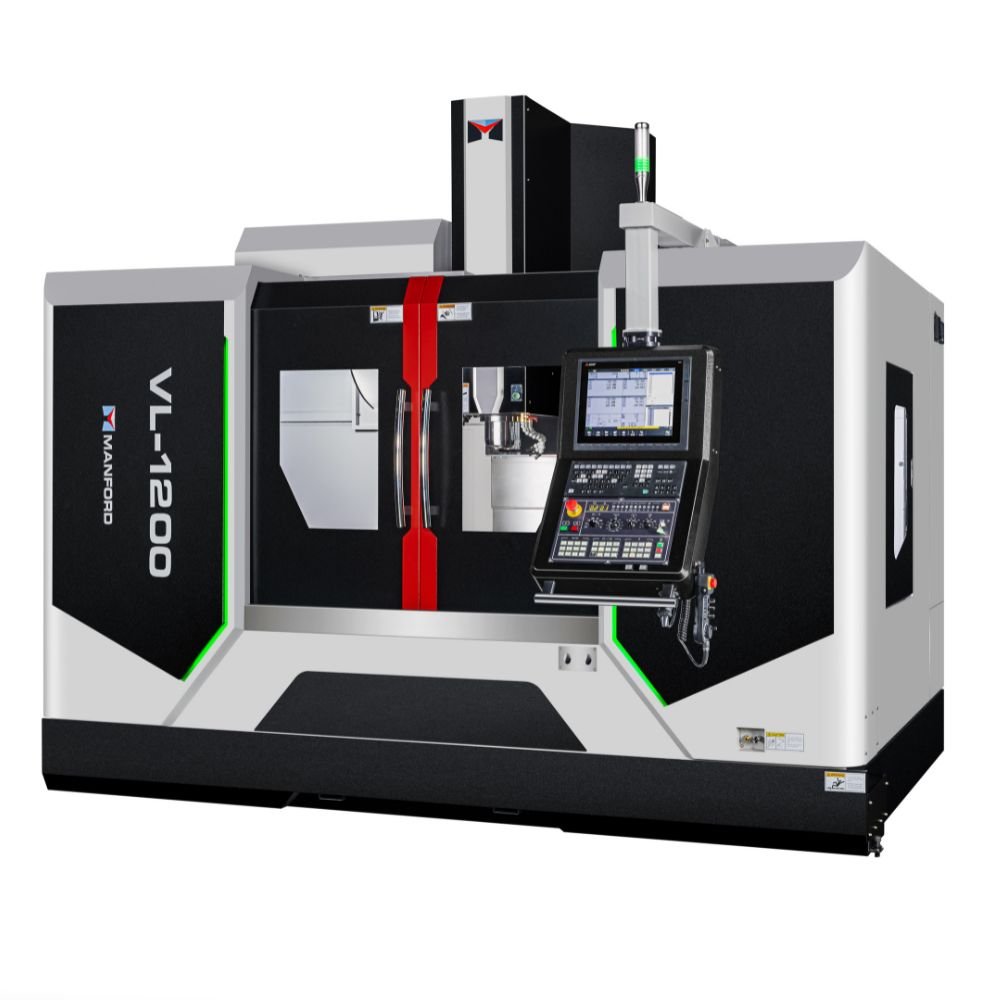

VL-1200

    • With low friction and no hysteresis features, specially suitable for 3D machining and high precision machining.

    • Increase the quality of machining surface which save the manual buffing process on the surface of workpiece.

    • For molding machining, a high speed machining center can execute the deep concave machining or remove small arc angle, no need to use expensive EDM machining.

Specification
X TRAVEL:1,200 mm
Y TRAVEL:610 mm
Z TRAVEL: 610 mm
SPINDLE NOSE TO TABLE SURFACE :150 ~ 760 mm
TABLE SIZE: 1,300 x 600 mm
T-SLOT (Q'TY X SIZE X DIST) : 5 x 18 x 100 mm
MAX. TABLE LOAD:1,200 kg
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
TRANSMISSION:Belt type/direct type
SPINDLE TAPER:BT-40
SPINDLE SPEED:8,000rpm/10,000 rpm
SPINDLE MOTOR:5.5 / 7.5 kW
Other Items
ATC CAPACITY:ATC Genoa type 16 tools / Arm type 24 tools for maximum
Specification
X TRAVEL:47.25 inch
Y TRAVEL:24.02 inch
Z TRAVEL:24.02 inch
SPINDLE NOSE TO TABLE SURFACE :5.91 ~ 29.92 inch
TABLE SIZE: 51.18 X 23.62 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.2 x 0.71 x 3.94 inch
MAX. TABLE LOAD:2645.6 lbs
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
TRANSMISSION:Belt type/direct type
SPINDLE TAPER:BT-40
SPINDLE SPEED:8,000rpm/10,000 rpm
SPINDLE MOTOR:5.5 / 7.5 kW
Other Items
ATC CAPACITY:ATC Genoa type 16 tools / Arm type 24 tools for maximum

*Spindle motor power depends on motor selection

*Note: Specifications are subject to change without further notice.
