SBH-8/SBH-8M
*Note: Specifications are subject to change without further notice.
Capacity
Max. Swing over bed:Ø600 mm
Max. Swing over saddle:Ø400 mm
Max.Turning diameter:Ø410 mm
Max. Working Length:500/750/1000 mm
Distance between centers:620/870/1120 mm
Travel
X axis travel :205+25 mm
Z axis travel :550/800/1050 mm
X axis rapid speed:20 m/min
Z axis rapid speed:24 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Cutting feed rate:1-1000 mm/min
Dia. of B.S (X/Z axis) X: Ø32 Z:Ø40
Spindle
Spindle nose type:A2-8
Max. Spindle speed:3500 rpm
Front bearing I.D of spindle:Ø130 mm
Spindle bore:Ø92.2 mm
Max. Bar capacity:Ø78 mm
Chuck size:10"/3 Jaws

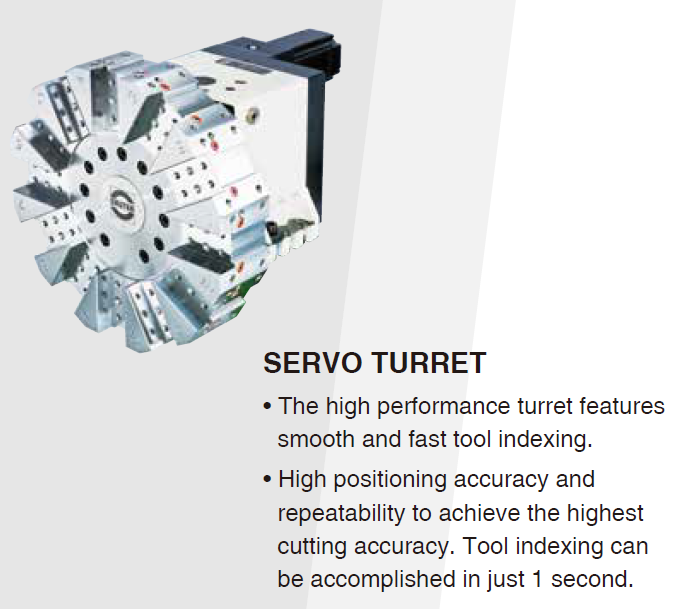

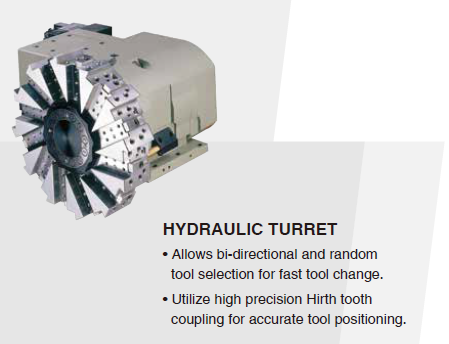

Turret
Type:Servo
Number of tool stations:12 pcs
Tool shank size:25x25
Max. Boring bar Dia.:Ø40 mm
Tailstock
Tailstock Travel:550/800/1050 mm
Quill Dia.:Ø90 mm
Quill Travel:102 mm
Taper of Center:MT5
Tailstock orientation:Manual
Motor
Main spindle motor power:15/18.5 Kw
Feed motor :3/3 Kw
Power turret motor:3.7/5.5 Kw
Lubrication Pump:70 W
Hydraulic oil pump:3 HP
Coolant pump:0.75 Kw
Chip conveyor:0.2 Kw
Power requirement:35 KVA
Utility
Hydraulic tank capacity:50 L
Coolant tank:120/140/160 L
Lubrication tank:2 L
Air source:6 kg/cm2
Max. Swing over bed:Ø600 mm
Max. Swing over saddle:Ø400 mm
Max.Turning diameter:Ø410 mm
Max. Working Length:500/750/1000 mm
Distance between centers:620/870/1120 mm
Travel
X axis travel :205+25 mm
Z axis travel :550/800/1050 mm
X axis rapid speed:20 m/min
Z axis rapid speed:24 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Cutting feed rate:1-1000 mm/min
Dia. of B.S (X/Z axis) X: Ø32 Z:Ø40
Spindle
Spindle nose type:A2-8
Max. Spindle speed:3500 rpm
Front bearing I.D of spindle:Ø130 mm
Spindle bore:Ø92.2 mm
Max. Bar capacity:Ø78 mm
Chuck size:10"/3 Jaws
Turret
Type:Servo
Number of tool stations:12 pcs
Tool shank size:25x25
Max. Boring bar Dia.:Ø40 mm
Tailstock
Tailstock Travel:550/800/1050 mm
Quill Dia.:Ø90 mm
Quill Travel:102 mm
Taper of Center:MT5
Tailstock orientation:Manual
Motor
Main spindle motor power:15/18.5 Kw
Feed motor :3/3 Kw
Power turret motor:3.7/5.5 Kw
Lubrication Pump:70 W
Hydraulic oil pump:3 HP
Coolant pump:0.75 Kw
Chip conveyor:0.2 Kw
Power requirement:35 KVA
Utility
Hydraulic tank capacity:50 L
Coolant tank:120/140/160 L
Lubrication tank:2 L
Air source:6 kg/cm2
Capacity
Max. Swing over bed:Ø23.62 inch
Max. Swing over saddle:Ø15.75 inch
Max.Turning diameter:Ø16.14 inch
Max. Working Length:19.69/29.53/39.37 inch
Distance between centers:24.41/34.25/44.1 inch
Travel
X axis travel :8.07+0.99 inch
Z axis travel :21.65/31.5/41.34 inch
X axis rapid speed:0.79 inch/min
Z axis rapid speed:0.95 inch/min
X axis cutting feed rate:0.39 inch/min
Z axis cutting feed rate:0.39 inch/min
Cutting feed rate:0.04-39.37 inch/min
Dia. of B.S (X/Z axis) X: Ø1.26 inch Z:Ø1.58 inch
Spindle
Spindle nose type:A2-8
Max. Spindle speed:3500 rpm
Front bearing I.D of spindle:Ø5.12 inch
Spindle bore:Ø3.63 mm
Max. Bar capacity:Ø3.07 inch
Chuck size:10"/3 Jaws
Turret
Type:Servo
Number of tool stations:12 pcs
Tool shank size:0.99x0.99 inch
Max. Boring bar Dia.:Ø1.58 inch
Tailstock
Tailstock Travel:21.66/31.5/41.34 inch
Quill Dia.:Ø3.54 inch
Quill Travel:4.02 inch
Taper of Center:MT5
Tailstock orientation:Manual
Motor
Main spindle motor power:15/18.5 Kw
Feed motor :3/3 Kw
Power turret motor:3.7/5.5 Kw
Lubrication Pump:70 W
Hydraulic oil pump:3 HP
Coolant pump:0.75 Kw
Chip conveyor:0.2 Kw
Power requirement:35 KVA
Utility
Hydraulic tank capacity:50 L
Coolant tank:120/140/160 L
Lubrication tank:2 L
Air source:6 kg/cm2
Max. Swing over bed:Ø23.62 inch
Max. Swing over saddle:Ø15.75 inch
Max.Turning diameter:Ø16.14 inch
Max. Working Length:19.69/29.53/39.37 inch
Distance between centers:24.41/34.25/44.1 inch
Travel
X axis travel :8.07+0.99 inch
Z axis travel :21.65/31.5/41.34 inch
X axis rapid speed:0.79 inch/min
Z axis rapid speed:0.95 inch/min
X axis cutting feed rate:0.39 inch/min
Z axis cutting feed rate:0.39 inch/min
Cutting feed rate:0.04-39.37 inch/min
Dia. of B.S (X/Z axis) X: Ø1.26 inch Z:Ø1.58 inch
Spindle
Spindle nose type:A2-8
Max. Spindle speed:3500 rpm
Front bearing I.D of spindle:Ø5.12 inch
Spindle bore:Ø3.63 mm
Max. Bar capacity:Ø3.07 inch
Chuck size:10"/3 Jaws
Turret
Type:Servo
Number of tool stations:12 pcs
Tool shank size:0.99x0.99 inch
Max. Boring bar Dia.:Ø1.58 inch
Tailstock
Tailstock Travel:21.66/31.5/41.34 inch
Quill Dia.:Ø3.54 inch
Quill Travel:4.02 inch
Taper of Center:MT5
Tailstock orientation:Manual
Motor
Main spindle motor power:15/18.5 Kw
Feed motor :3/3 Kw
Power turret motor:3.7/5.5 Kw
Lubrication Pump:70 W
Hydraulic oil pump:3 HP
Coolant pump:0.75 Kw
Chip conveyor:0.2 Kw
Power requirement:35 KVA
Utility
Hydraulic tank capacity:50 L
Coolant tank:120/140/160 L
Lubrication tank:2 L
Air source:6 kg/cm2
Capacity
Max. Swing over bed:Ø600 mm
Max. Swing over saddle:Ø400 mm
Max.Turning diameter:Ø300 mm
Max. Working Length:500/750/1000 mm
Distance between centers:620/870/1120 mm
Travel
X axis travel :205+25 mm
Z axis travel :550/800/1050 mm
X axis rapid speed:20 m/min
Z axis rapid speed:24 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Cutting feed rate:1-1000 mm/min
Dia. of B.S (X/Z axis) X: Ø32 Z:Ø40
Spindle
Spindle nose type:A2-8
Max. Spindle speed:3500 rpm
Front bearing I.D of spindle:Ø130 mm
Spindle bore:Ø92.2 mm
Max. Bar capacity:Ø78 mm
Chuck size:10"/3 Jaws

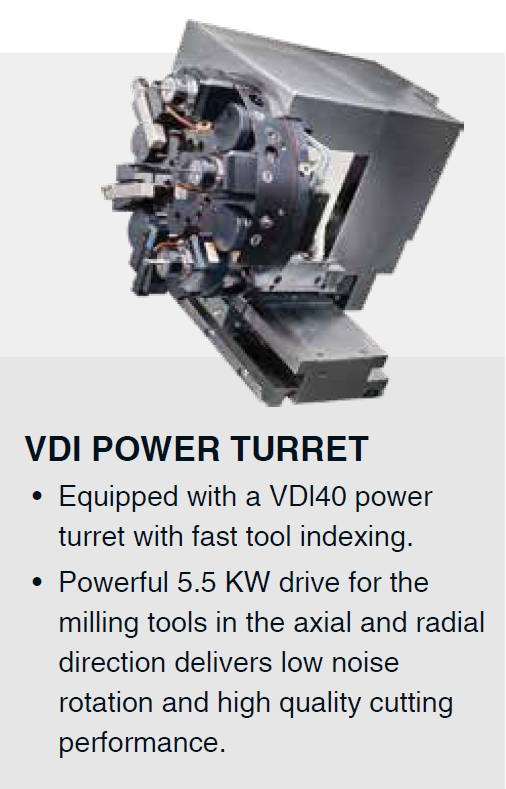

Turret
Type:Power
Number of tool stations:12 pcs
Tool shank size:VDI 40
Max. Boring bar Dia.:Ø40 mm
Tailstock
Tailstock Travel:550/800/1050 mm
Quill Dia.:Ø90 mm
Quill Travel:102 mm
Taper of Center:MT5
Tailstock orientation:Manual
Motor
Main spindle motor power:15/18.5 Kw
Feed motor :3/3 Kw
Power turret motor:3.7/5.5 Kw
Lubrication Pump:70 W
Hydraulic oil pump:3 HP
Coolant pump:0.75 Kw
Chip conveyor:0.2 Kw
Power requirement:35 KVA
Utility
Hydraulic tank capacity:50 L
Coolant tank:120/140/160 L
Lubrication tank:2 L
Air source:6 kg/cm2
Max. Swing over bed:Ø600 mm
Max. Swing over saddle:Ø400 mm
Max.Turning diameter:Ø300 mm
Max. Working Length:500/750/1000 mm
Distance between centers:620/870/1120 mm
Travel
X axis travel :205+25 mm
Z axis travel :550/800/1050 mm
X axis rapid speed:20 m/min
Z axis rapid speed:24 m/min
X axis cutting feed rate:10 m/min
Z axis cutting feed rate:10 m/min
Cutting feed rate:1-1000 mm/min
Dia. of B.S (X/Z axis) X: Ø32 Z:Ø40
Spindle
Spindle nose type:A2-8
Max. Spindle speed:3500 rpm
Front bearing I.D of spindle:Ø130 mm
Spindle bore:Ø92.2 mm
Max. Bar capacity:Ø78 mm
Chuck size:10"/3 Jaws
Turret
Type:Power
Number of tool stations:12 pcs
Tool shank size:VDI 40
Max. Boring bar Dia.:Ø40 mm
Tailstock
Tailstock Travel:550/800/1050 mm
Quill Dia.:Ø90 mm
Quill Travel:102 mm
Taper of Center:MT5
Tailstock orientation:Manual
Motor
Main spindle motor power:15/18.5 Kw
Feed motor :3/3 Kw
Power turret motor:3.7/5.5 Kw
Lubrication Pump:70 W
Hydraulic oil pump:3 HP
Coolant pump:0.75 Kw
Chip conveyor:0.2 Kw
Power requirement:35 KVA
Utility
Hydraulic tank capacity:50 L
Coolant tank:120/140/160 L
Lubrication tank:2 L
Air source:6 kg/cm2
Capacity
Max. Swing over bed:Ø23.62 inch
Max. Swing over saddle:Ø15.75 inch
Max.Turning diameter:Ø11.81 inch
Max. Working Length:19.69/29.53/39.37 inch
Distance between centers:24.41/34.25/44.1 inch
Travel
X axis travel :8.07+0.99 inch
Z axis travel :21.65/31.5/41.34 inch
X axis rapid speed:0.79 inch/min
Z axis rapid speed:0.95 inch/min
X axis cutting feed rate:0.39 inch/min
Z axis cutting feed rate:0.39 inch/min
Cutting feed rate:0.04-39.37 inch/min
Dia. of B.S (X/Z axis) X: Ø1.26 inch Z:Ø1.58 inch
Spindle
Spindle nose type:A2-8
Max. Spindle speed:3500 rpm
Front bearing I.D of spindle:Ø5.12 inch
Spindle bore:Ø3.63 mm
Max. Bar capacity:Ø3.07 inch
Chuck size:10"/3 Jaws
Turret
Type:Power
Number of tool stations:12 pcs
Tool shank size:VDI 40
Max. Boring bar Dia.:Ø1.58 inch
Tailstock
Tailstock Travel:21.66/31.5/41.34 inch
Quill Dia.:Ø3.54 inch
Quill Travel:4.02 inch
Taper of Center:MT5
Tailstock orientation:Manual
Motor
Main spindle motor power:15/18.5 Kw
Feed motor :3/3 Kw
Power turret motor:3.7/5.5 Kw
Lubrication Pump:70 W
Hydraulic oil pump:3 HP
Coolant pump:0.75 Kw
Chip conveyor:0.2 Kw
Power requirement:35 KVA
Utility
Hydraulic tank capacity:50 L
Coolant tank:120/140/160 L
Lubrication tank:2 L
Air source:6 kg/cm2
Max. Swing over bed:Ø23.62 inch
Max. Swing over saddle:Ø15.75 inch
Max.Turning diameter:Ø11.81 inch
Max. Working Length:19.69/29.53/39.37 inch
Distance between centers:24.41/34.25/44.1 inch
Travel
X axis travel :8.07+0.99 inch
Z axis travel :21.65/31.5/41.34 inch
X axis rapid speed:0.79 inch/min
Z axis rapid speed:0.95 inch/min
X axis cutting feed rate:0.39 inch/min
Z axis cutting feed rate:0.39 inch/min
Cutting feed rate:0.04-39.37 inch/min
Dia. of B.S (X/Z axis) X: Ø1.26 inch Z:Ø1.58 inch
Spindle
Spindle nose type:A2-8
Max. Spindle speed:3500 rpm
Front bearing I.D of spindle:Ø5.12 inch
Spindle bore:Ø3.63 mm
Max. Bar capacity:Ø3.07 inch
Chuck size:10"/3 Jaws
Turret
Type:Power
Number of tool stations:12 pcs
Tool shank size:VDI 40
Max. Boring bar Dia.:Ø1.58 inch
Tailstock
Tailstock Travel:21.66/31.5/41.34 inch
Quill Dia.:Ø3.54 inch
Quill Travel:4.02 inch
Taper of Center:MT5
Tailstock orientation:Manual
Motor
Main spindle motor power:15/18.5 Kw
Feed motor :3/3 Kw
Power turret motor:3.7/5.5 Kw
Lubrication Pump:70 W
Hydraulic oil pump:3 HP
Coolant pump:0.75 Kw
Chip conveyor:0.2 Kw
Power requirement:35 KVA
Utility
Hydraulic tank capacity:50 L
Coolant tank:120/140/160 L
Lubrication tank:2 L
Air source:6 kg/cm2
