ML-800S/800M/800L

    • Finite Element Analysis (FEA)

    • Highly rigid headstock

    • Automatic tailstock

    • Linear guideways

    • High precision, high speed ballscrews

Capacity
Max. Swing over bed:Ø800 mm
Max. Swing over saddle:Ø600 mm
Max.Turning diameter:Ø620 mm
Max. Working Length:1,000 mm
Distance between centers:1,342 mm
Travel
X axis travel :310+30 mm
Z axis travel :1,150 mm
C-axis (Optional):360˚(0.001˚)
Spindle
Spindle nose type:A2-11/A2-15(OPT)
Max. Spindle speed:50~2,000(A2-11) rpm/50~1,000(OPT:A2-15) rpm
Front bearing I.D of spindle:Ø180 mm(A2-11)/Ø240 mm(OPT:A2-15)
Max. Bar capacity:Ø120 mm(A2-11)/Ø166.5 mm(OPT:A2-15)
Chuck size:15"/(OPT:Oversize 18")

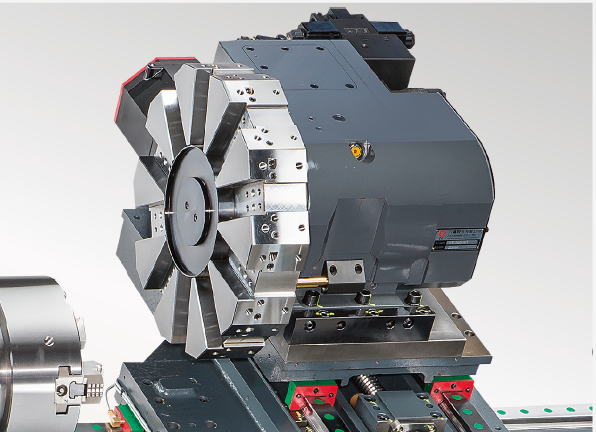

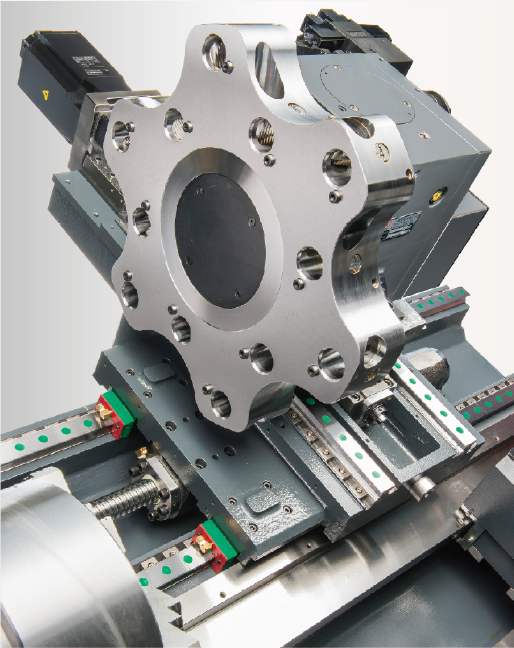

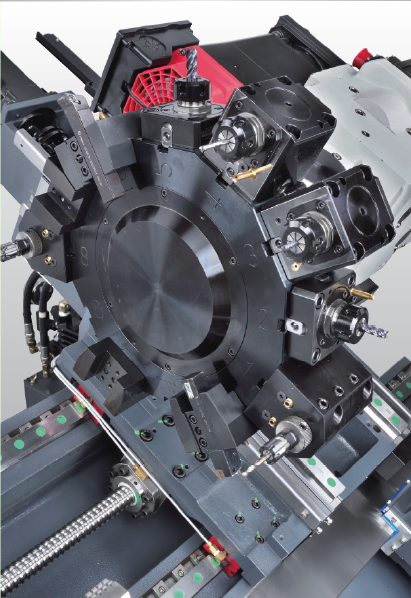

Turret
Type:Hydraulic
Number of tool stations:12 pcs
Tool shank size:32x32
Max. Boring bar Dia.:Ø50 mm
Tailstock
Tailstock Travel:1,100 mm
Quill Dia.:Ø125 mm
Quill Travel:160 mm
Taper of Center:MT5
Tailstock orientation:Automatic
Motor
Main spindle motor power:22/26 Kw
Feed motor :4.0 Kw
Power turret motor:5.5/7.5 Kw
Hydraulic oil pump:2.24 HP
Coolant pump:1.3 Kw
Chip conveyor:0.2 Kw
Power requirement:30 KVA
Capacity
Max. Swing over bed:Ø800 mm
Max. Swing over saddle:Ø600 mm
Max.Turning diameter:Ø620 mm
Max. Working Length:2,000 mm
Distance between centers:2,342 mm
Travel
X axis travel :310+30 mm
Z axis travel :2,000 mm
C-axis :360˚(0.001˚)
Spindle
Spindle nose type:A2-11/A2-15(OPT)
Max. Spindle speed:50-2,000 rpm(15")/50~1,000(OPT:18")
Front bearing I.D of spindle:Ø180 mm(15")/Ø240 mm(OPT:15")
Max. Bar capacity:Ø120 mm(A2-11)/Ø166.5 mm(OPT:A2-15)
Chuck size:15"/(OPT:Oversize 18")
Turret
Type:Hydraulic
Number of tool stations:12 pcs
Tool shank size:32x32
Max. Boring bar Dia.:Ø50 mm
Tailstock
Tailstock Travel:2,100 mm
Quill Dia.:Ø125 mm
Quill Travel:160 mm
Taper of Center:MT5
Tailstock orientation:Automatic
Motor
Main spindle motor power:22/26 Kw
Feed motor :4.0 Kw
Power turret motor:5.5/7.5 Kw
Hydraulic oil pump:2.24 HP
Coolant pump:1.3 Kw
Chip conveyor:0.2 Kw
Power requirement:30 KVA
Capacity
Max. Swing over bed:Ø800 mm
Max. Swing over saddle:Ø600 mm
Max.Turning diameter:Ø620 mm
Max. Working Length:3,000 mm
Distance between centers:3,342 mm
Travel
X axis travel :310+30 mm
Z axis travel :3,150 mm
C-axis :360˚(0.001˚)
Spindle
Spindle nose type:A2-11/A2-15(OPT)
Max. Spindle speed:50-2,000 rpm(15")/50~1,000(OPT:18")
Front bearing I.D of spindle:Ø180 mm(15")/Ø240 mm(OPT:15")
Max. Bar capacity:Ø120 mm(A2-11)/Ø166.5 mm(OPT:A2-15)
Chuck size:15"/(OPT:Oversize 18")
Turret
Type:Hydraulic
Number of tool stations:12 pcs
Tool shank size:32x32
Max. Boring bar Dia.:Ø50 mm
Tailstock
Tailstock Travel:3,100 mm
Quill Dia.:Ø125 mm
Quill Travel:160 mm
Taper of Center:MT5
Tailstock orientation:Automatic
Motor
Main spindle motor power:22/26 Kw
Feed motor :4.0 Kw
Power turret motor:5.5/7.5 Kw
Hydraulic oil pump:2.24 HP
Coolant pump:1.3 Kw
Chip conveyor:0.2 Kw
Power requirement:30 KVA
Capacity
Max. Swing over bed:Ø31.5 inch
Max. Swing over saddle:Ø23.62 inch
Max.Turning diameter:Ø24.41 inch
Max. Working Length:39.37 inch
Distance between centers:52.84 inch
Travel
X axis travel :12.21+1.18 inch
Z axis travel :45.28 inch
C-axis (Optional):360˚(0.001˚)
Spindle
Spindle nose type:A2-11/A2-15(OPT)
Max. Spindle speed:50~2,000(A2-11) rpm/50~1,000(OPT:A2-15) rpm
Front bearing I.D of spindle:Ø7.09 inch(A2-11)/Ø9.45 inch(OPT:A2-15)
Max. Bar capacity:Ø4.73 inch(A2-11)/Ø6.56 inch(OPT:A2-15)
Chuck size:15"/(OPT:Oversize 18")
Turret
Type:Hydraulic
Number of tool stations:12 pcs
Tool shank size:1.26x1.26
Max. Boring bar Dia.:Ø1.97 inch
Tailstock
Tailstock Travel:43.31 inch
Quill Dia.:Ø4.92 inch
Quill Travel:6.3 inch
Taper of Center:MT5
Tailstock orientation:Automatic
Motor
Main spindle motor power:22/26 Kw
Feed motor :4.0 Kw
Power turret motor:5.5/7.5 Kw
Hydraulic oil pump:2.24 HP
Coolant pump:1.3 Kw
Chip conveyor:0.2 Kw
Power requirement:30 KVA
Capacity
Max. Swing over bed:Ø31.5 inch
Max. Swing over saddle:Ø23.62 inch
Max.Turning diameter:Ø24.41 inch
Max. Working Length:78.74 mm
Distance between centers:92.21 inch
Travel
X axis travel :12.21+1.18 inch
Z axis travel :78.74 inch
C-axis (Optional):360˚(0.001˚)
Spindle
Spindle nose type:A2-11/A2-15(OPT)
Max. Spindle speed:50~2,000(A2-11) rpm/50~1,000(OPT:A2-15) rpm
Front bearing I.D of spindle:Ø7.09 inch(A2-11)/Ø9.45 inch(OPT:A2-15)
Max. Bar capacity:Ø4.73 inch(A2-11)/Ø6.56 inch(OPT:A2-15)
Chuck size:15"/(OPT:Oversize 18")
Turret
Type:Hydraulic
Number of tool stations:12 pcs
Tool shank size:1.26x1.26
Max. Boring bar Dia.:Ø1.97 inch
Tailstock
Tailstock Travel:82.68 inch
Quill Dia.:Ø4.92 inch
Quill Travel:6.3 inch
Taper of Center:MT5
Tailstock orientation:Automatic
Motor
Main spindle motor power:22/26 Kw
Feed motor :4.0 Kw
Power turret motor:5.5/7.5 Kw
Hydraulic oil pump:2.24 HP
Coolant pump:1.3 Kw
Chip conveyor:0.2 Kw
Power requirement:30 KVA
Capacity
Max. Swing over bed:Ø31.5 inch
Max. Swing over saddle:Ø23.62 inch
Max.Turning diameter:Ø24.41 inch
Max. Working Length:118.11 inch
Distance between centers:131.58 inch
Travel
X axis travel :12.21+1.18 inch
Z axis travel :124.02 inch
C-axis (Optional):360˚(0.001˚)
Spindle
Spindle nose type:A2-11/A2-15(OPT)
Max. Spindle speed:50~2,000(A2-11) rpm/50~1,000(OPT:A2-15) rpm
Front bearing I.D of spindle:Ø7.09 inch(A2-11)/Ø9.45 inch(OPT:A2-15)
Max. Bar capacity:Ø4.73 inch(A2-11)/Ø6.56 inch(OPT:A2-15)
Chuck size:15"/(OPT:Oversize 18")
Turret
Type:Hydraulic
Number of tool stations:12 pcs
Tool shank size:1.26x1.26
Max. Boring bar Dia.:Ø1.97 inch
Tailstock
Tailstock Travel:122.05 inch
Quill Dia.:Ø4.92 inch
Quill Travel:6.3 inch
Taper of Center:MT5
Tailstock orientation:Automatic
Motor
Main spindle motor power:22/26 Kw
Feed motor :4.0 Kw
Power turret motor:5.5/7.5 Kw
Hydraulic oil pump:2.24 HP
Coolant pump:1.3 Kw
Chip conveyor:0.2 Kw
Power requirement:30 KVA
