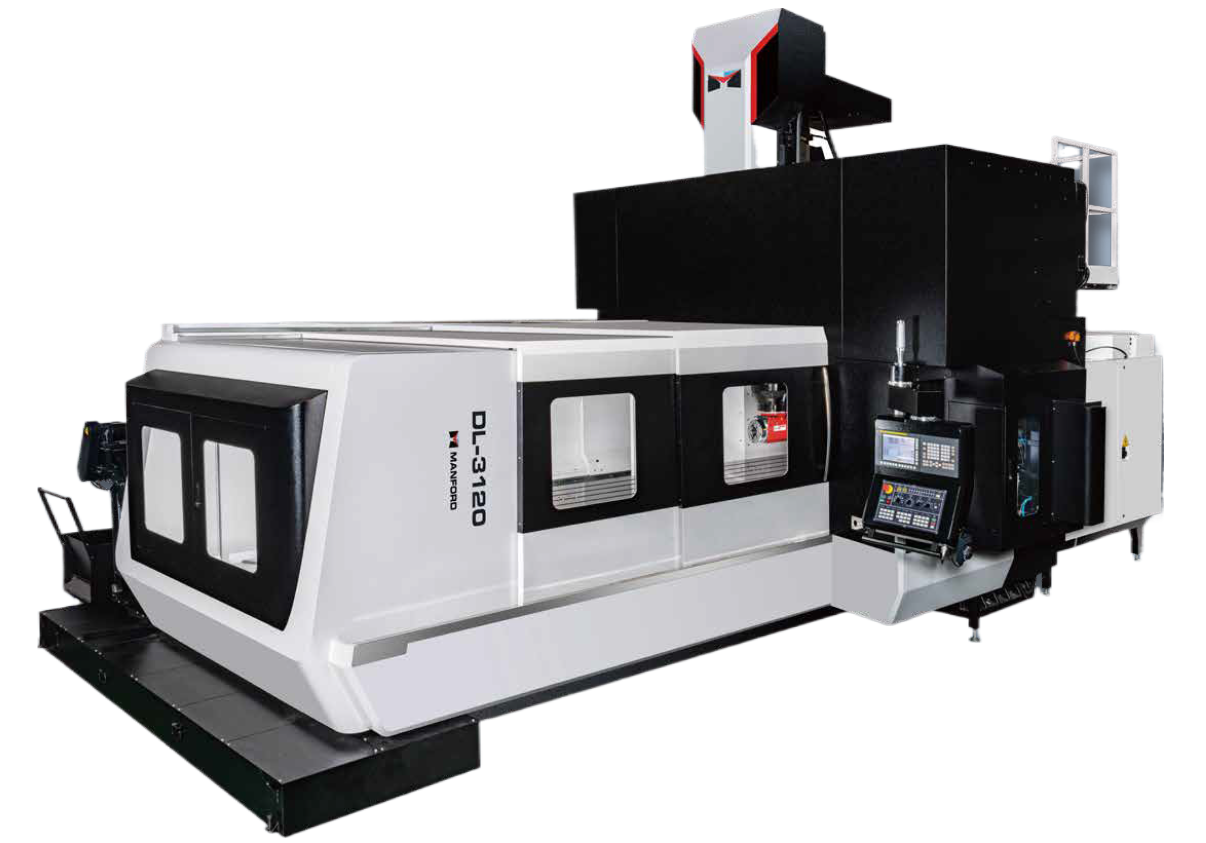

DL-3120/DL-4120
Specification
X TRAVEL:3,100 mm
Y TRAVEL:2,020 mm
Z TRAVEL:800 mm
SPINDLE NOSE TO TABLE SURFACE :150 ~ 950 mm
DISTANCE BETWEEN COLUMNS:2,100 mm
TABLE SIZE:3,000 x1,800 mm
T-SLOT (Q'TY X SIZE X DIST) :11 x 22 x 150 mm
MAX. TABLE LOAD:10,000 kg
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
SPINDLE TRANSMISSION:Two-step Gear transmission
SPINDLE TAPER:BT50
SPINDLE SPEED:6,000rpm
SPINDLE MOTOR:15 / 18.5 kW
Other Items

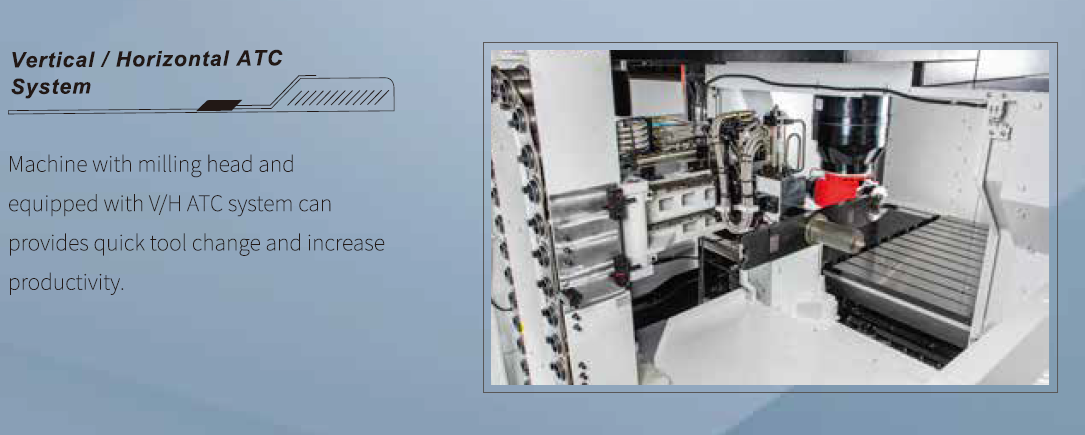

ATC CAPACITY:ATC CAPACITY:32 tools
SLIDEWAYS FOR 3 AXIS:X / Y: Roller type linear guideway / Z: Box ways
X TRAVEL:3,100 mm
Y TRAVEL:2,020 mm
Z TRAVEL:800 mm
SPINDLE NOSE TO TABLE SURFACE :150 ~ 950 mm
DISTANCE BETWEEN COLUMNS:2,100 mm
TABLE SIZE:3,000 x1,800 mm
T-SLOT (Q'TY X SIZE X DIST) :11 x 22 x 150 mm
MAX. TABLE LOAD:10,000 kg
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
SPINDLE TRANSMISSION:Two-step Gear transmission
SPINDLE TAPER:BT50
SPINDLE SPEED:6,000rpm
SPINDLE MOTOR:15 / 18.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:32 tools
SLIDEWAYS FOR 3 AXIS:X / Y: Roller type linear guideway / Z: Box ways
Specification
X TRAVEL:122.05 inch
Y TRAVEL:79.53 inch
Z TRAVEL:31.5 inch
SPINDLE NOSE TO TABLE SURFACE :5.91 ~ 37.4 inch
DISTANCE BETWEEN COLUMNS:82.68 inch
TABLE SIZE: 157.48 X 70.87 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.43 x 0.87 x 5.91 inch
MAX. TABLE LOAD:22046.2 lbs
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
SPINDLE TRANSMISSION:Two-step Gear transmission
SPINDLE TAPER:BT50
SPINDLE SPEED:6,000rpm
SPINDLE MOTOR:15 / 18.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:32 tools
SLIDEWAYS FOR 3 AXIS:X / Y: Roller type linear guideway / Z: Box ways
X TRAVEL:122.05 inch
Y TRAVEL:79.53 inch
Z TRAVEL:31.5 inch
SPINDLE NOSE TO TABLE SURFACE :5.91 ~ 37.4 inch
DISTANCE BETWEEN COLUMNS:82.68 inch
TABLE SIZE: 157.48 X 70.87 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.43 x 0.87 x 5.91 inch
MAX. TABLE LOAD:22046.2 lbs
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
SPINDLE TRANSMISSION:Two-step Gear transmission
SPINDLE TAPER:BT50
SPINDLE SPEED:6,000rpm
SPINDLE MOTOR:15 / 18.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:32 tools
SLIDEWAYS FOR 3 AXIS:X / Y: Roller type linear guideway / Z: Box ways
Specification
X TRAVEL:4,100 mm
Y TRAVEL:2,020 mm
Z TRAVEL:800 mm
SPINDLE NOSE TO TABLE SURFACE :150 ~ 950 mm
DISTANCE BETWEEN COLUMNS:2,100 mm
TABLE SIZE:4,000 x1,800 mm
T-SLOT (Q'TY X SIZE X DIST) :11 x 22 x 150 mm
MAX. TABLE LOAD:10,000 kg
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
SPINDLE TRANSMISSION:Two-step Gear transmission
SPINDLE TAPER:BT50
SPINDLE SPEED:6,000rpm
SPINDLE MOTOR:15 / 18.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:32 tools
SLIDEWAYS FOR 3 AXIS:X / Y: Roller type linear guideway / Z: Box ways
X TRAVEL:4,100 mm
Y TRAVEL:2,020 mm
Z TRAVEL:800 mm
SPINDLE NOSE TO TABLE SURFACE :150 ~ 950 mm
DISTANCE BETWEEN COLUMNS:2,100 mm
TABLE SIZE:4,000 x1,800 mm
T-SLOT (Q'TY X SIZE X DIST) :11 x 22 x 150 mm
MAX. TABLE LOAD:10,000 kg
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
SPINDLE TRANSMISSION:Two-step Gear transmission
SPINDLE TAPER:BT50
SPINDLE SPEED:6,000rpm
SPINDLE MOTOR:15 / 18.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:32 tools
SLIDEWAYS FOR 3 AXIS:X / Y: Roller type linear guideway / Z: Box ways
Specification
X TRAVEL:161.42 inch
Y TRAVEL:79.53 inch
Z TRAVEL:31.5 inch
SPINDLE NOSE TO TABLE SURFACE :5.91 ~ 37.4 inch
DISTANCE BETWEEN COLUMNS:82.68 inch
TABLE SIZE: 157.48 X 70.87 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.43 x 0.87 x 5.91 inch
MAX. TABLE LOAD:22046.2 lbs
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
SPINDLE TRANSMISSION:Two-step Gear transmission
SPINDLE TAPER:BT50
SPINDLE SPEED:6,000rpm
SPINDLE MOTOR:15 / 18.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:32 tools
SLIDEWAYS FOR 3 AXIS:X / Y: Roller type linear guideway / Z: Box ways
X TRAVEL:161.42 inch
Y TRAVEL:79.53 inch
Z TRAVEL:31.5 inch
SPINDLE NOSE TO TABLE SURFACE :5.91 ~ 37.4 inch
DISTANCE BETWEEN COLUMNS:82.68 inch
TABLE SIZE: 157.48 X 70.87 inch
T-SLOT (Q'TY X SIZE X DIST) : 0.43 x 0.87 x 5.91 inch
MAX. TABLE LOAD:22046.2 lbs
CNC CONTROL:Fanuc/Mitsubishi/Siemens
Spindle
SPINDLE TRANSMISSION:Two-step Gear transmission
SPINDLE TAPER:BT50
SPINDLE SPEED:6,000rpm
SPINDLE MOTOR:15 / 18.5 kW
Other Items
ATC CAPACITY:ATC CAPACITY:32 tools
SLIDEWAYS FOR 3 AXIS:X / Y: Roller type linear guideway / Z: Box ways
Note: Specifications are subject to change without further notice.
